VSCode Usage

The tutorial demonstrates the steps to install VSCode and SSH remote on Windows platform.

Users can use this method to remotely control motherboards such as Raspberry Pi and Jetson

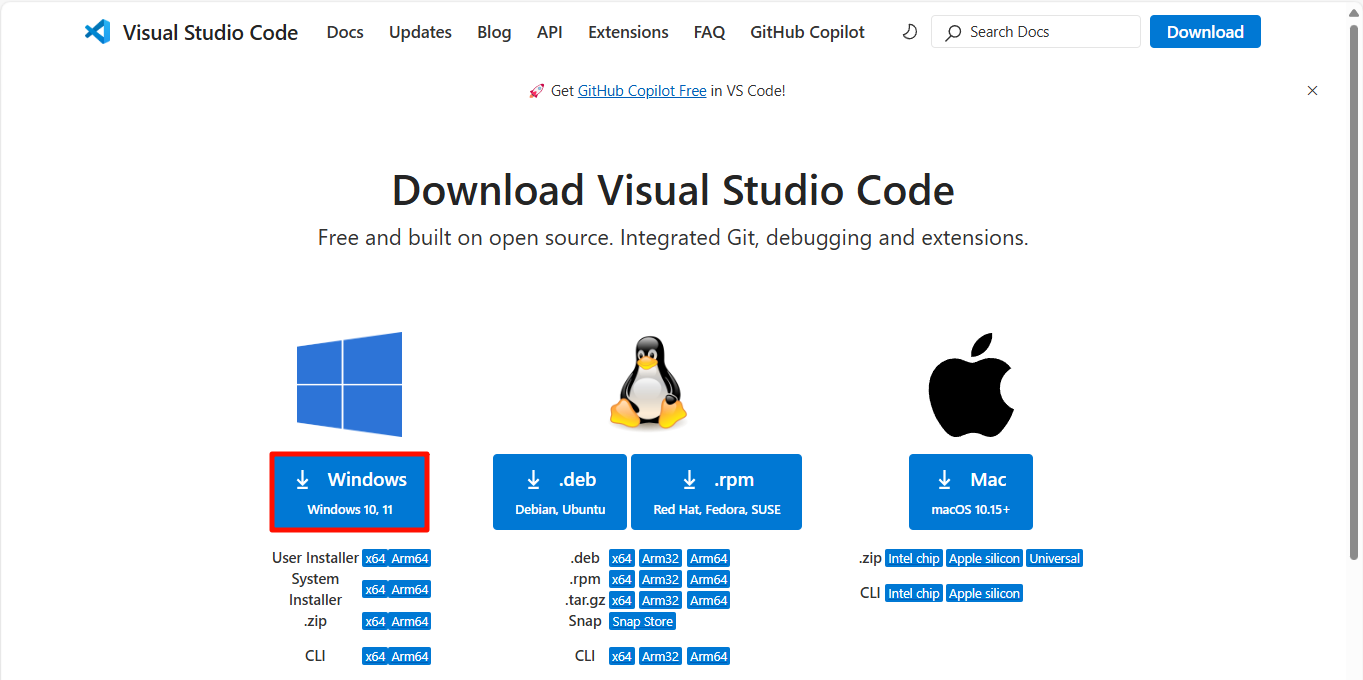

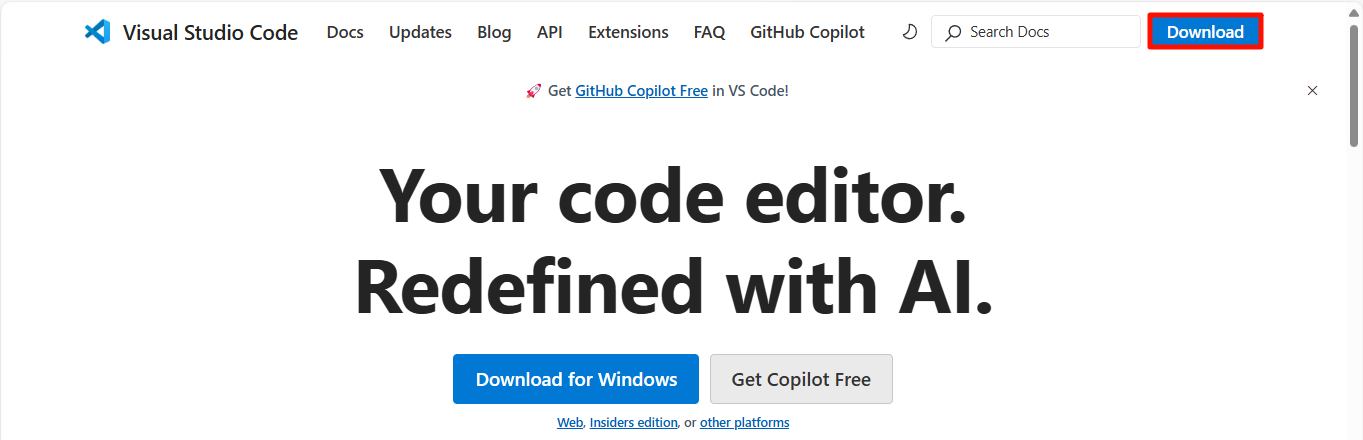

1. Download VSCode​

Official website: https://code.visualstudio.com/

image-20241229141638179

image-20241229141703922

2. Install VSCode​

2.1. Open the installation package​

Open VSCodeUserSetup-x64-xxx.exe as an administrator

image-20241229141818112

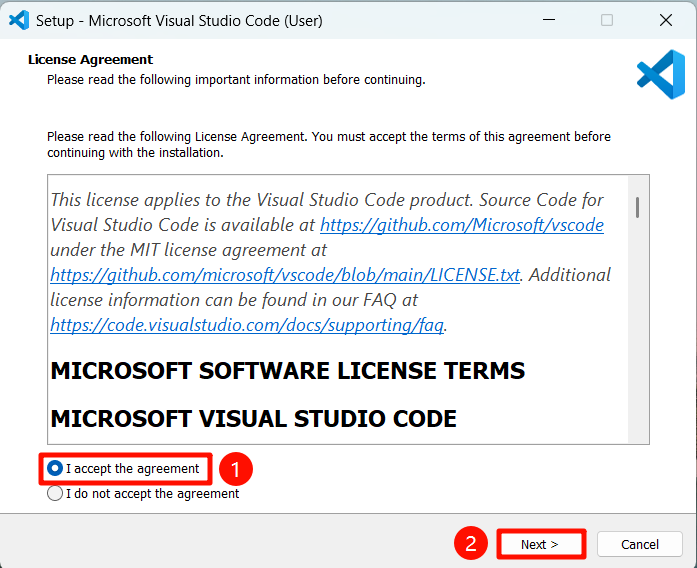

2.2. Agree to the agreement​

image-20241229142216475

2.3. Installation location​

It is recommended to select the default installation location of the software:

image-20241229142324425

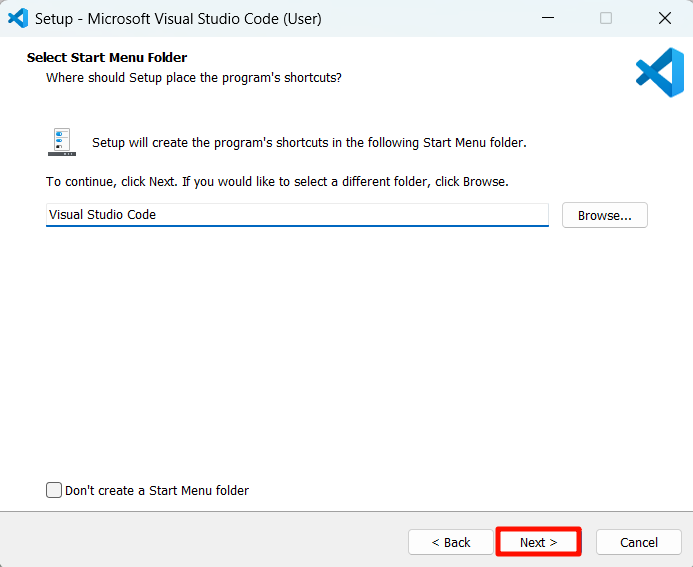

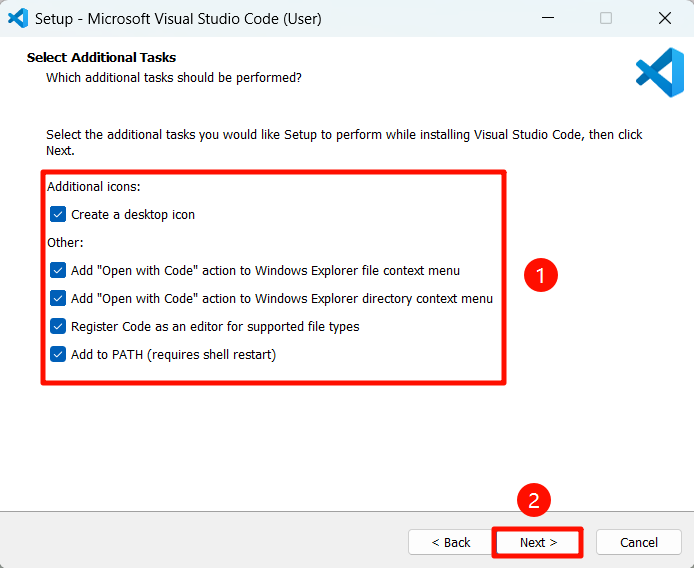

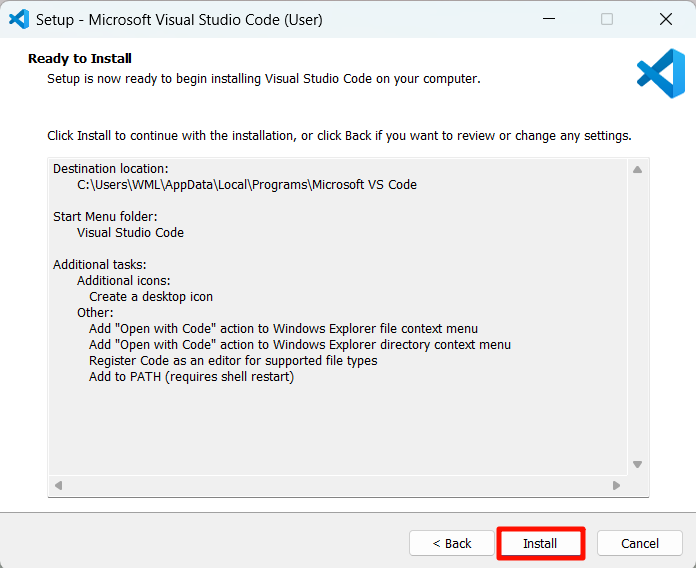

2.4. Installation options​

image-20241229142425202

image-20241229142459323

image-20241229142550001

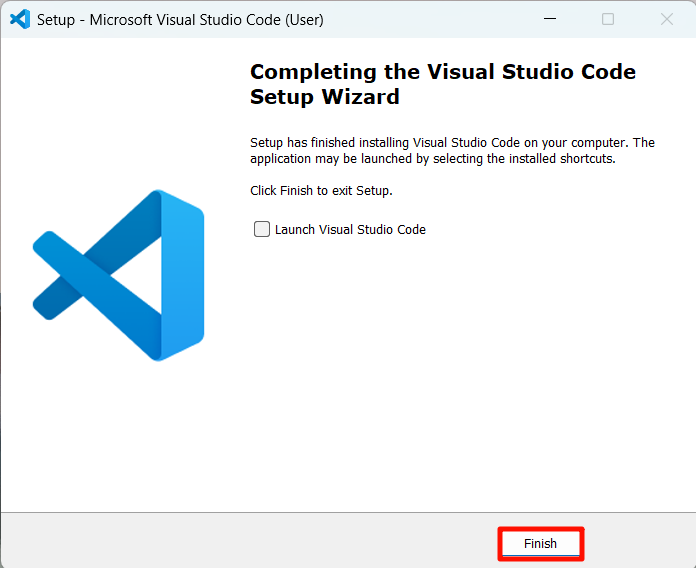

2.5. Complete the installation​

image-20241229142633937

3. Use VSCode​

3.1. Basic use​

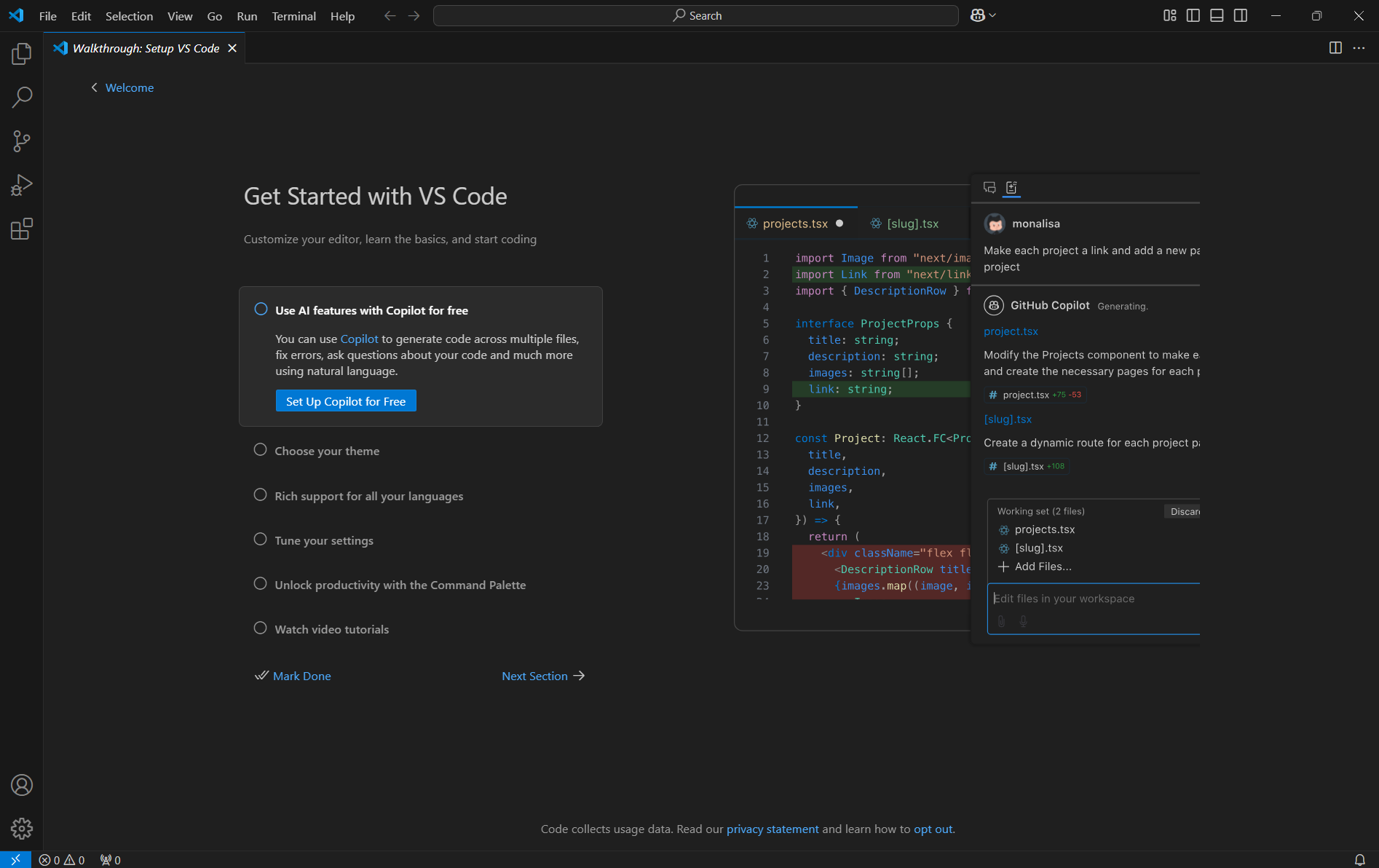

Double-click "Visual Studio Code" icon to open the application:

image-20241229142704122

image-20241229142818516

3.2, Extended use​

3.2.1, Basic extension​

Python​

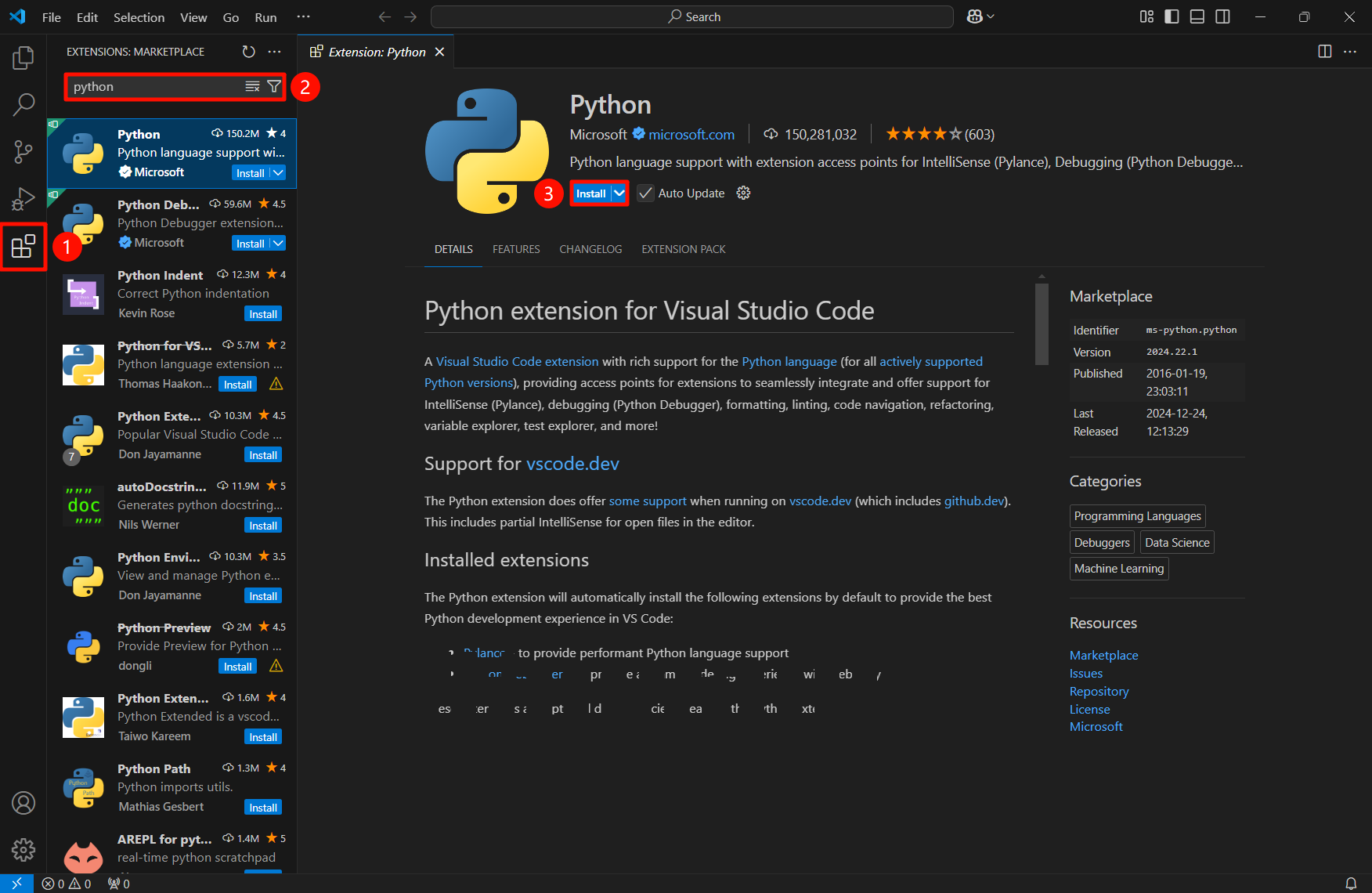

Search for "python" in the extended search bar, and select Python to install:

image-20250103224402098

C/C++​

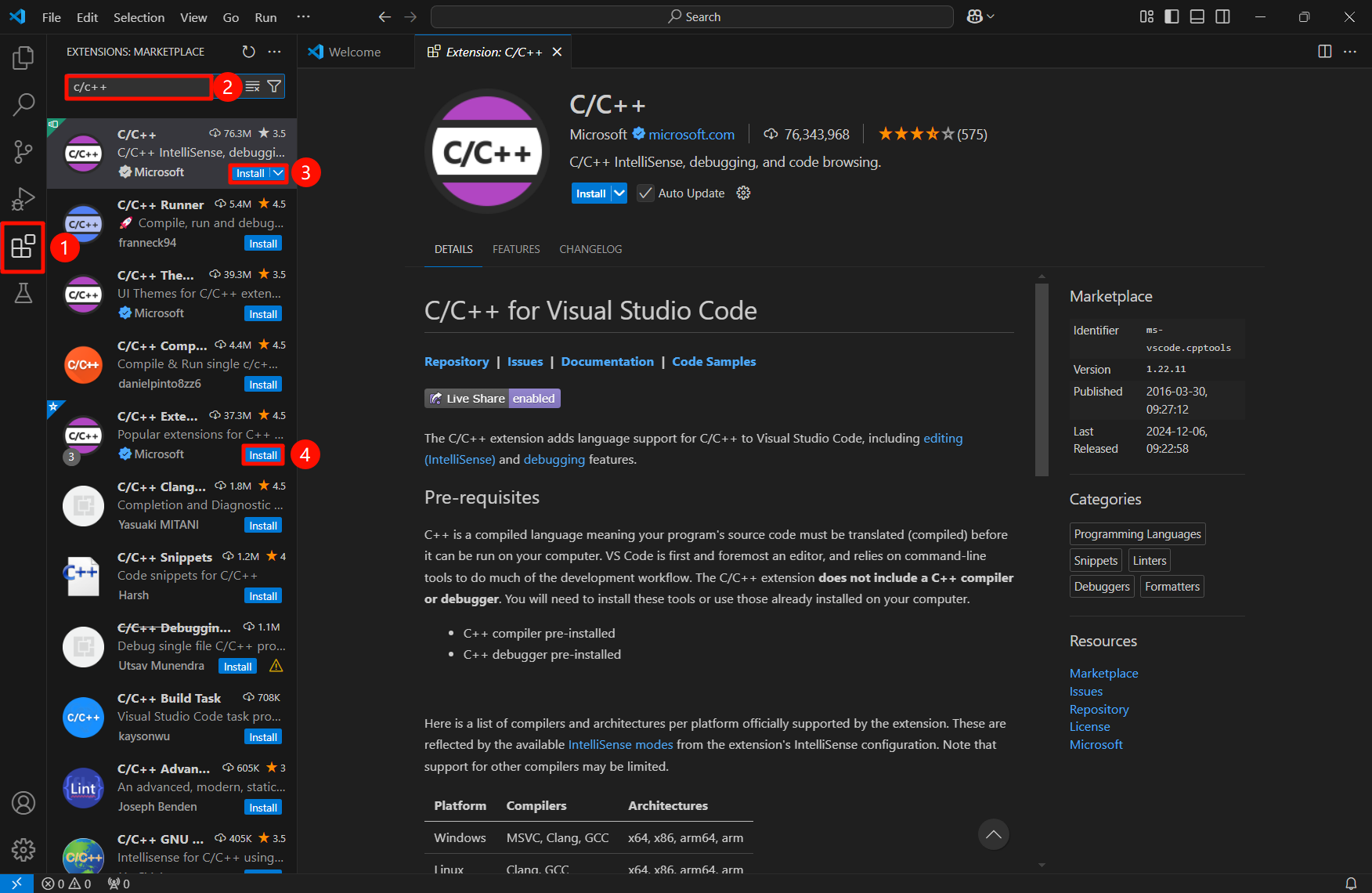

Search for "c/c++" in the extended search bar, and select C/C++, C/C++ Extension Pack to install:

image-20250103224833396

Material Icon Theme​

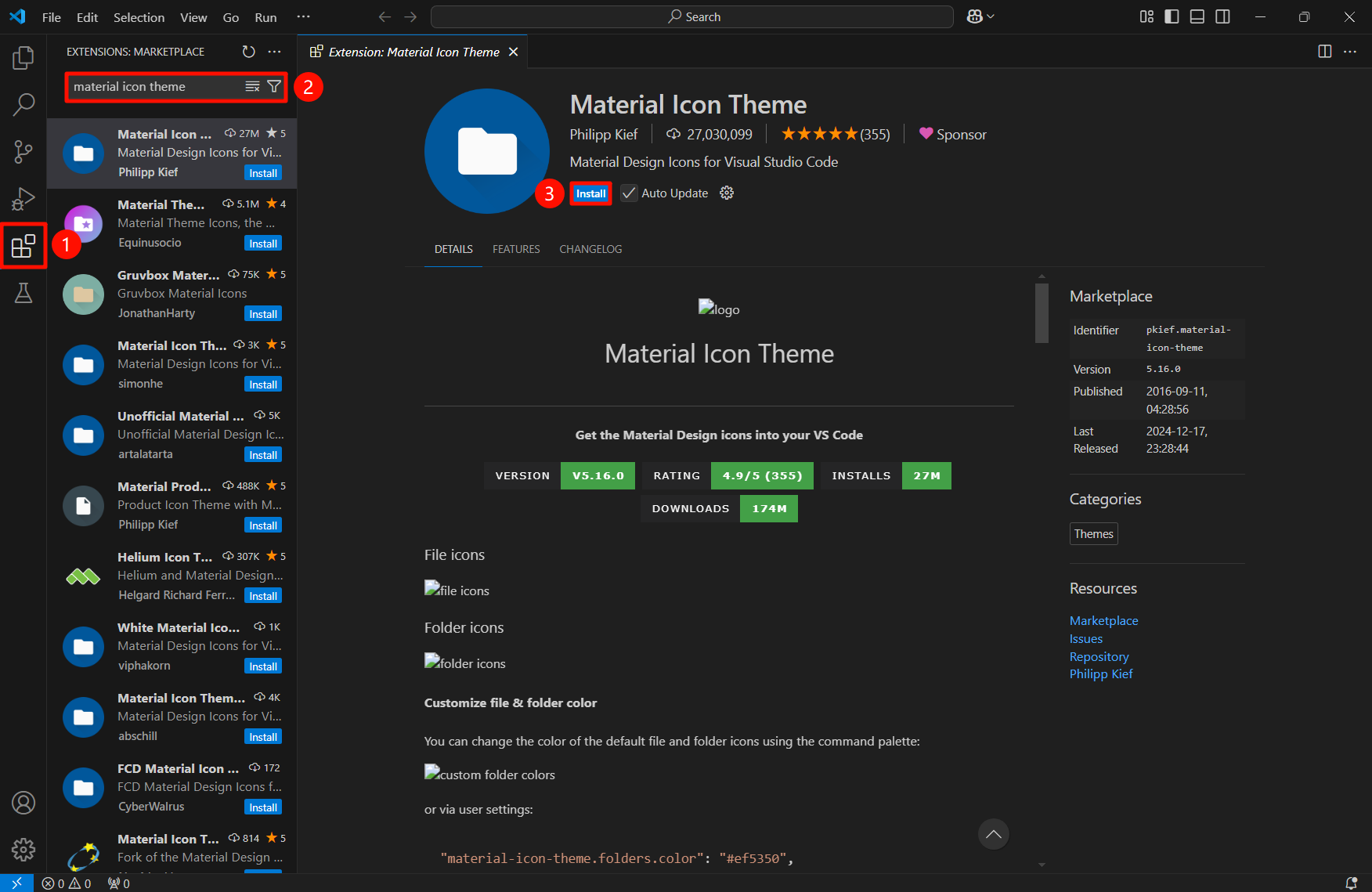

Search for "material icon theme" in the expanded search bar, and select Material Icon Theme to install:

image-20250103225155546

image-20250103225255205

3.2.2, Remote-SSH​

ssh installation​

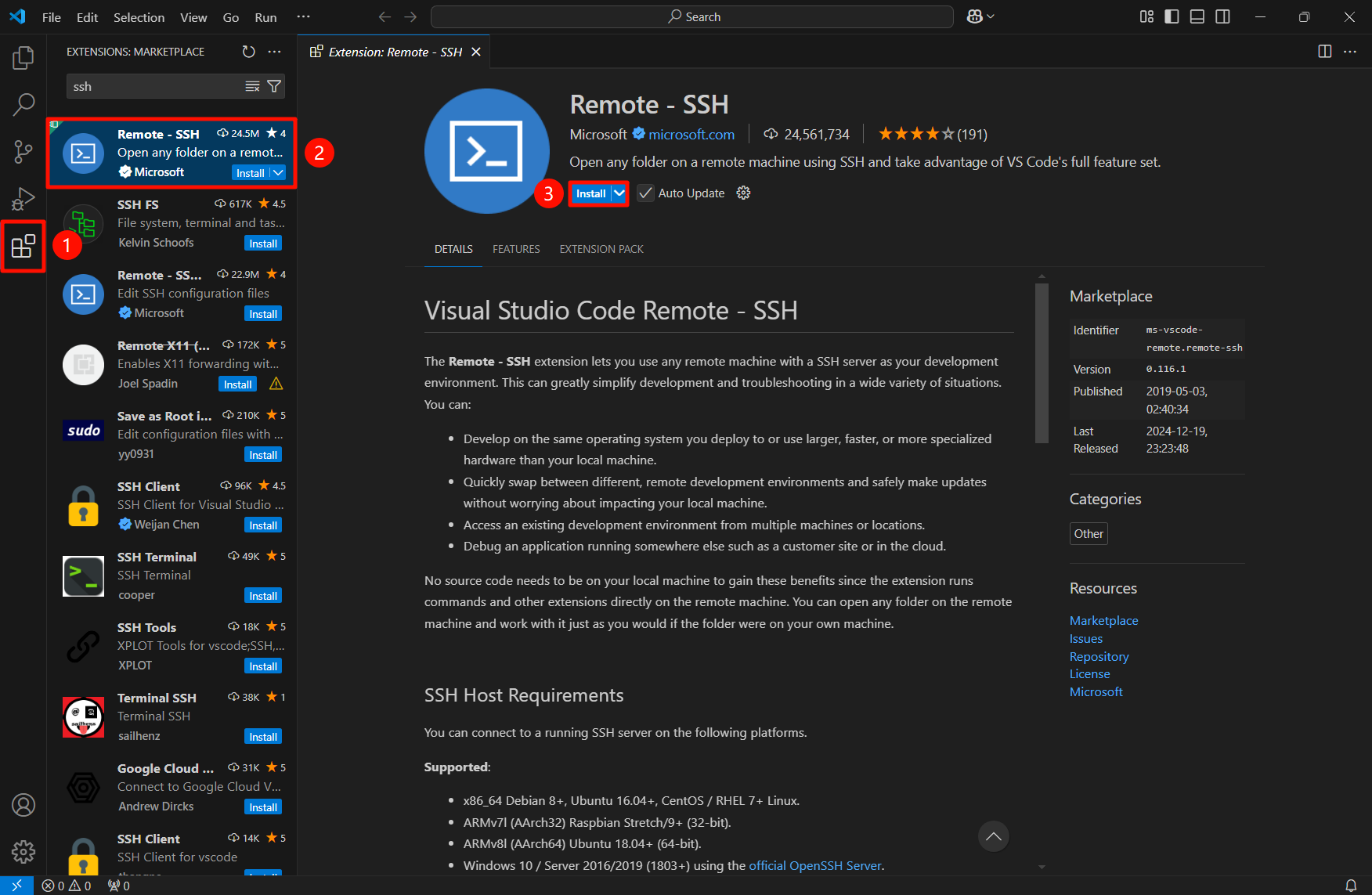

Search for "ssh" in the expanded search bar , select Remote-SSH to install:

image-20250103214934768

ssh usage​

After Remote-SSH is installed, you can use it directly through the status bar on the left!

Different users may have inconsistent path usernames in the configuration file, and there is no impression

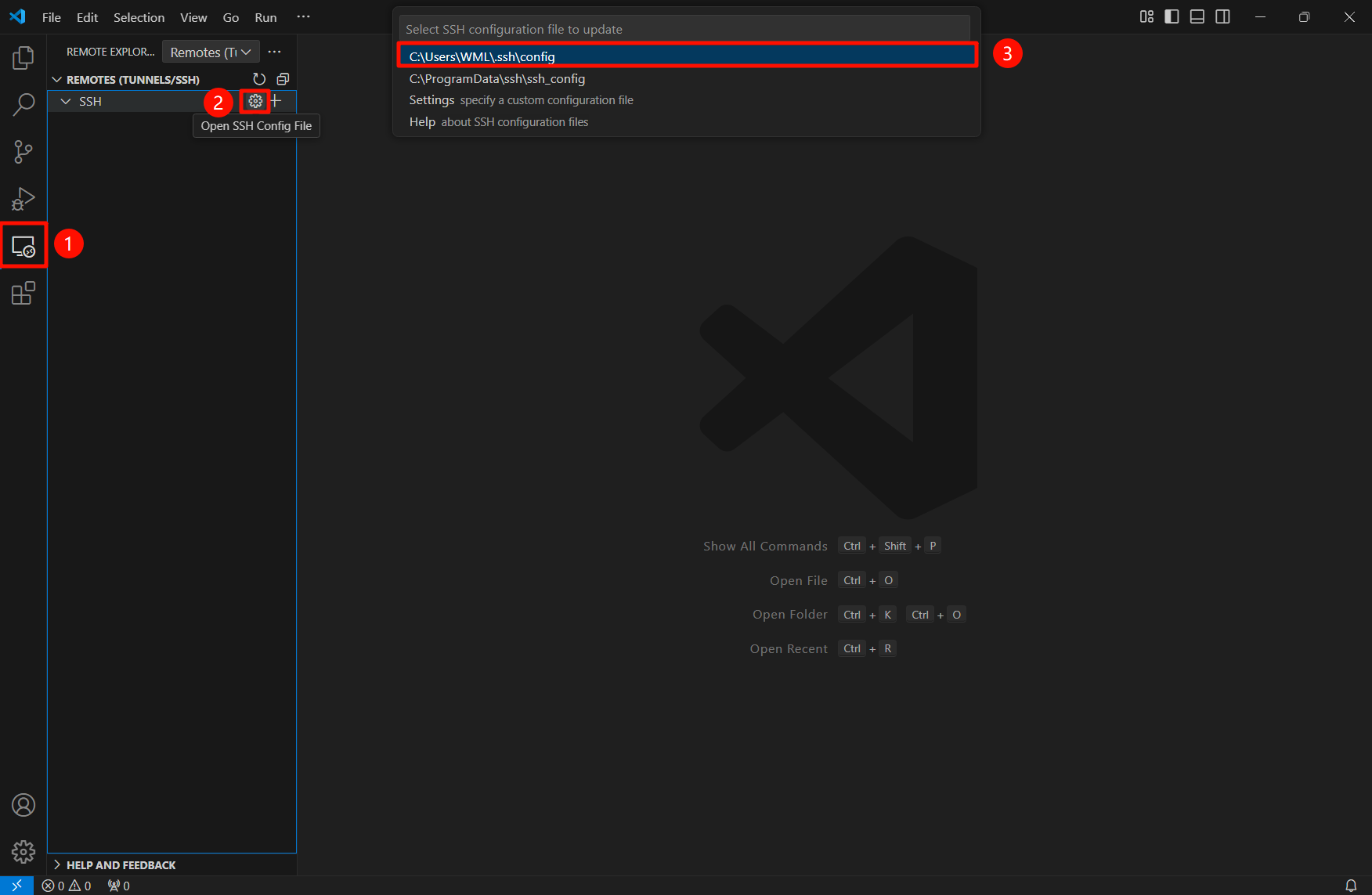

Configure remote: modify the configuration file

image-20250103215854788

Configure remote: modify the configuration file

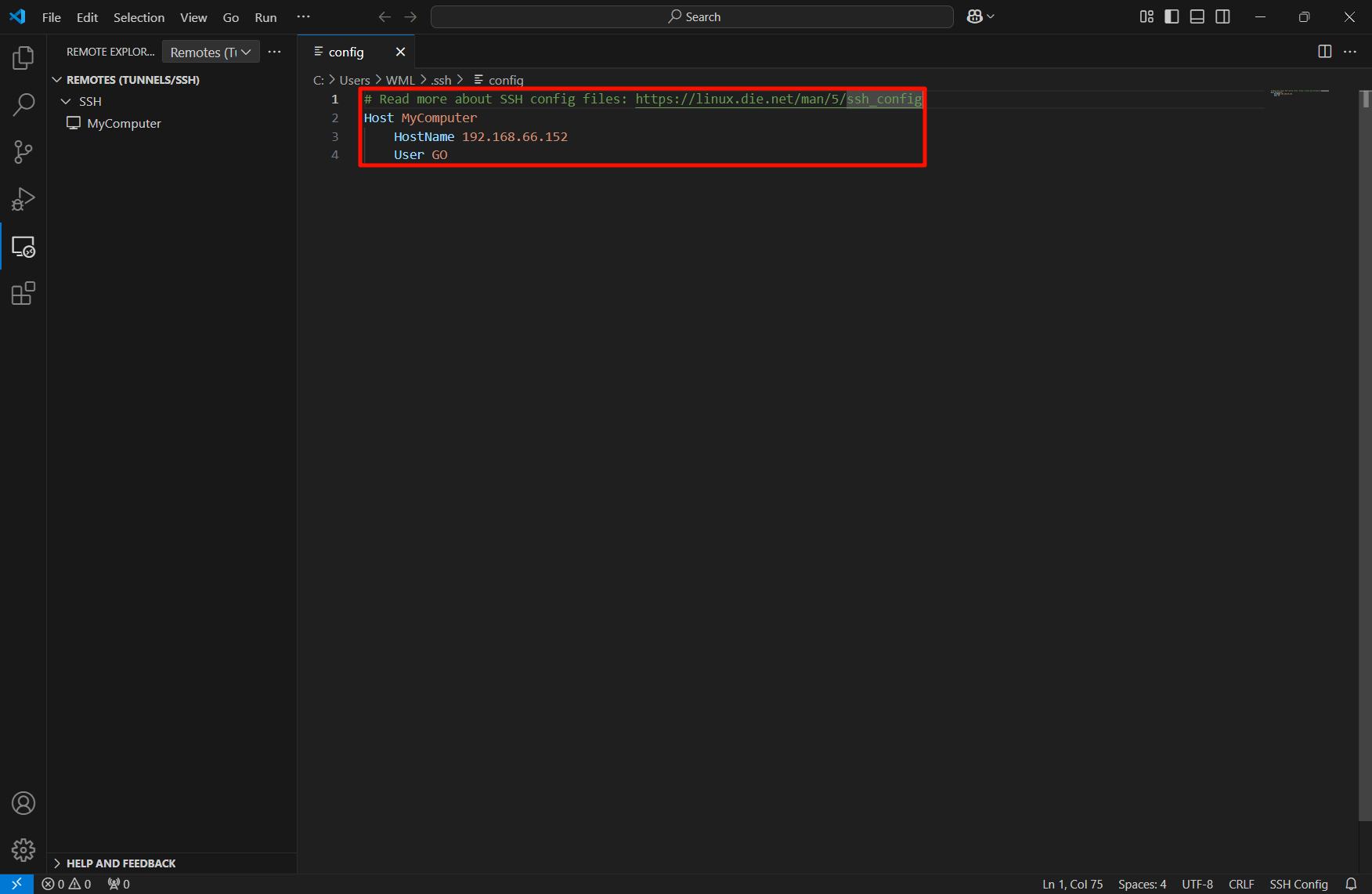

Fill in the device information that needs to be remote, the remote device needs to configure the SSH service and support SSH remote; after filling in, use the Ctrl+S shortcut key to save, and the corresponding SSH remote device will be automatically added on the left.

# Read more about SSH config files: https://linux.die.net/man/5/ssh_config
Host MyComputer # Remote device alias
HostName 192.168.66.152 # Remote device IP
User GO # Remote device user name

image-20250103221210749

Remote

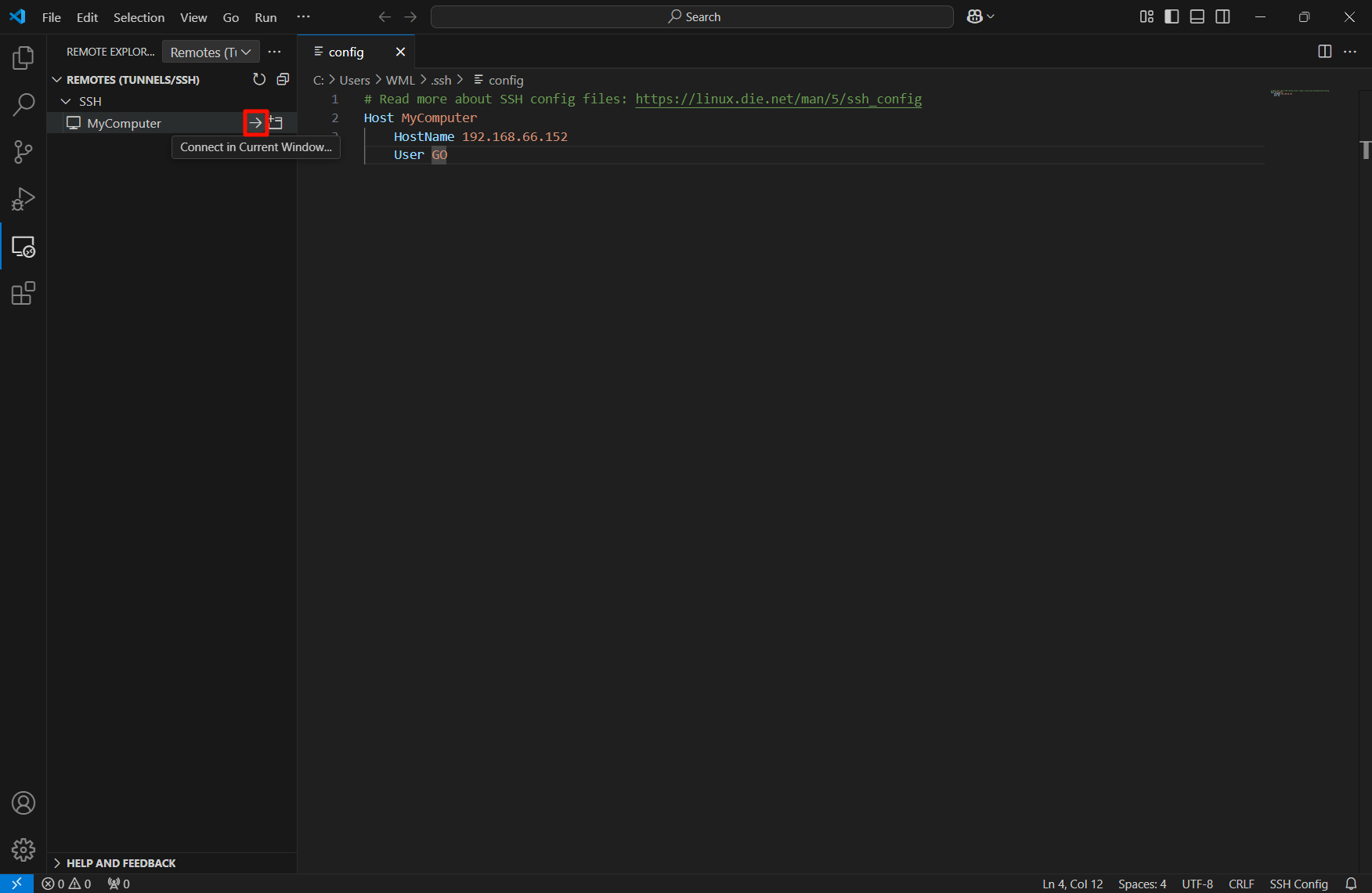

Select the remote device for SSH remote:

image-20250103221608414

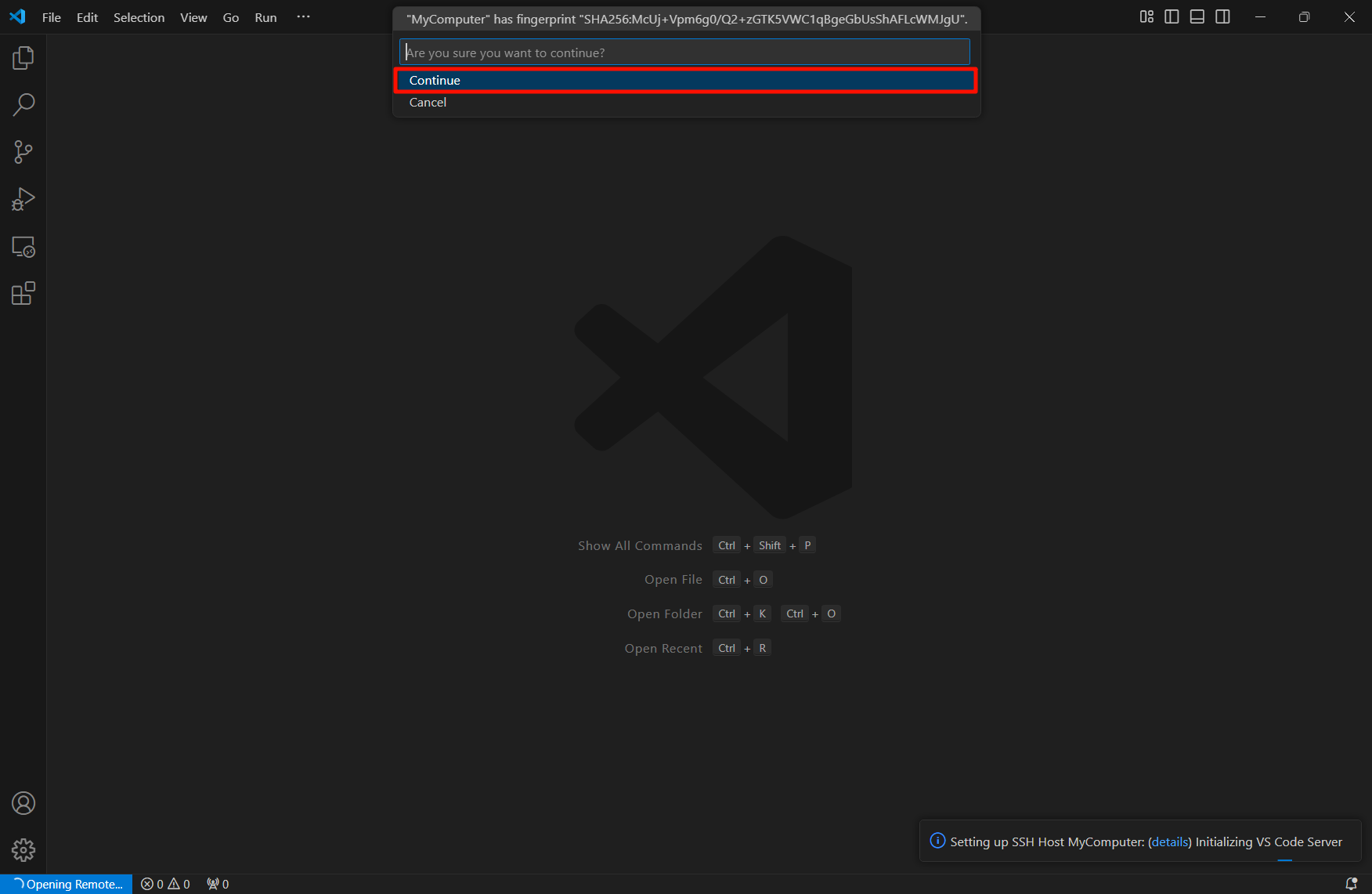

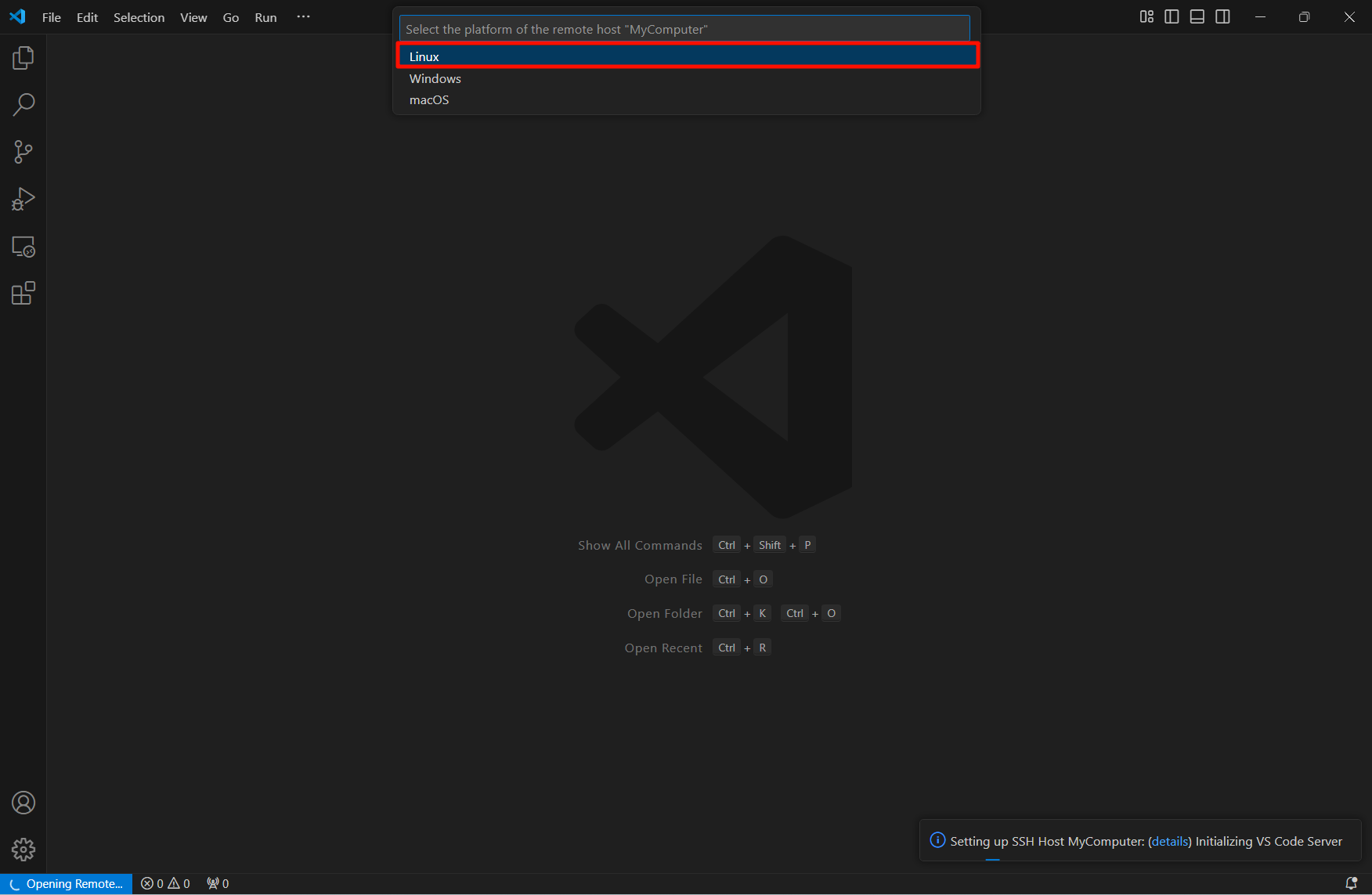

Select the remote device platform: fill in according to the actual platform

image-20250103221642634

image-20250103222730231

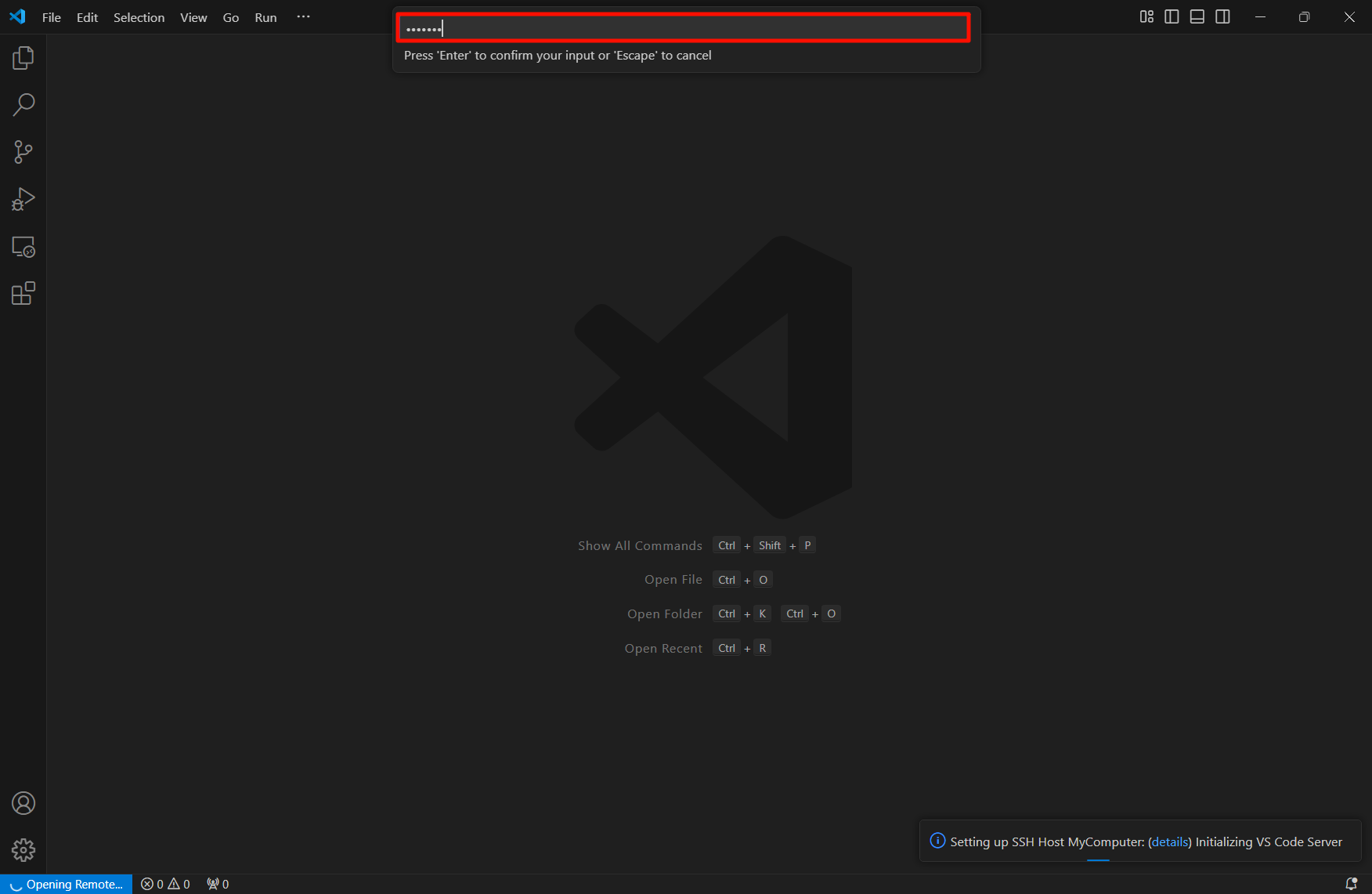

Fill in the password: Enter to confirm after filling in the password

image-20250103222811721

Remote use

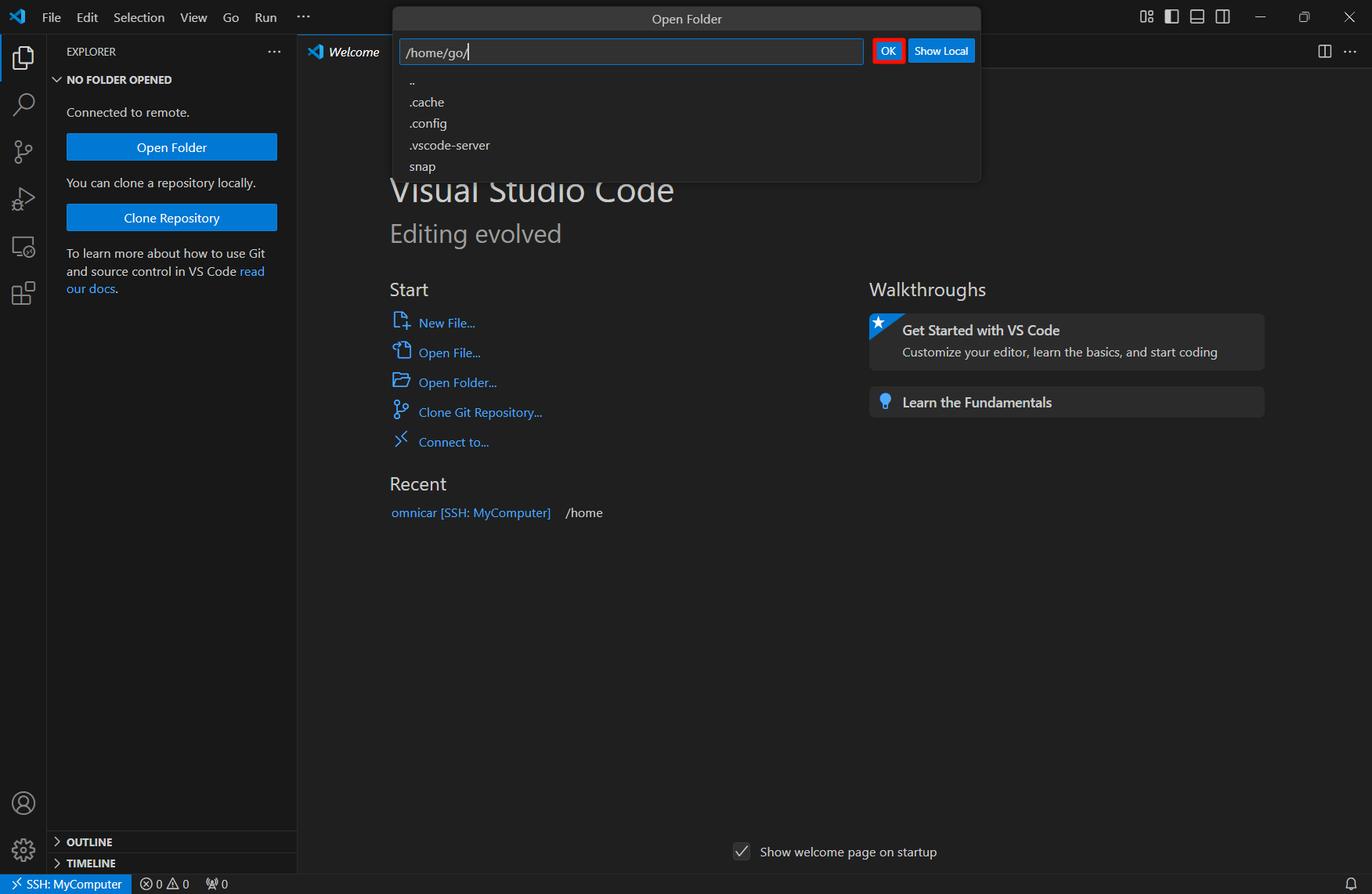

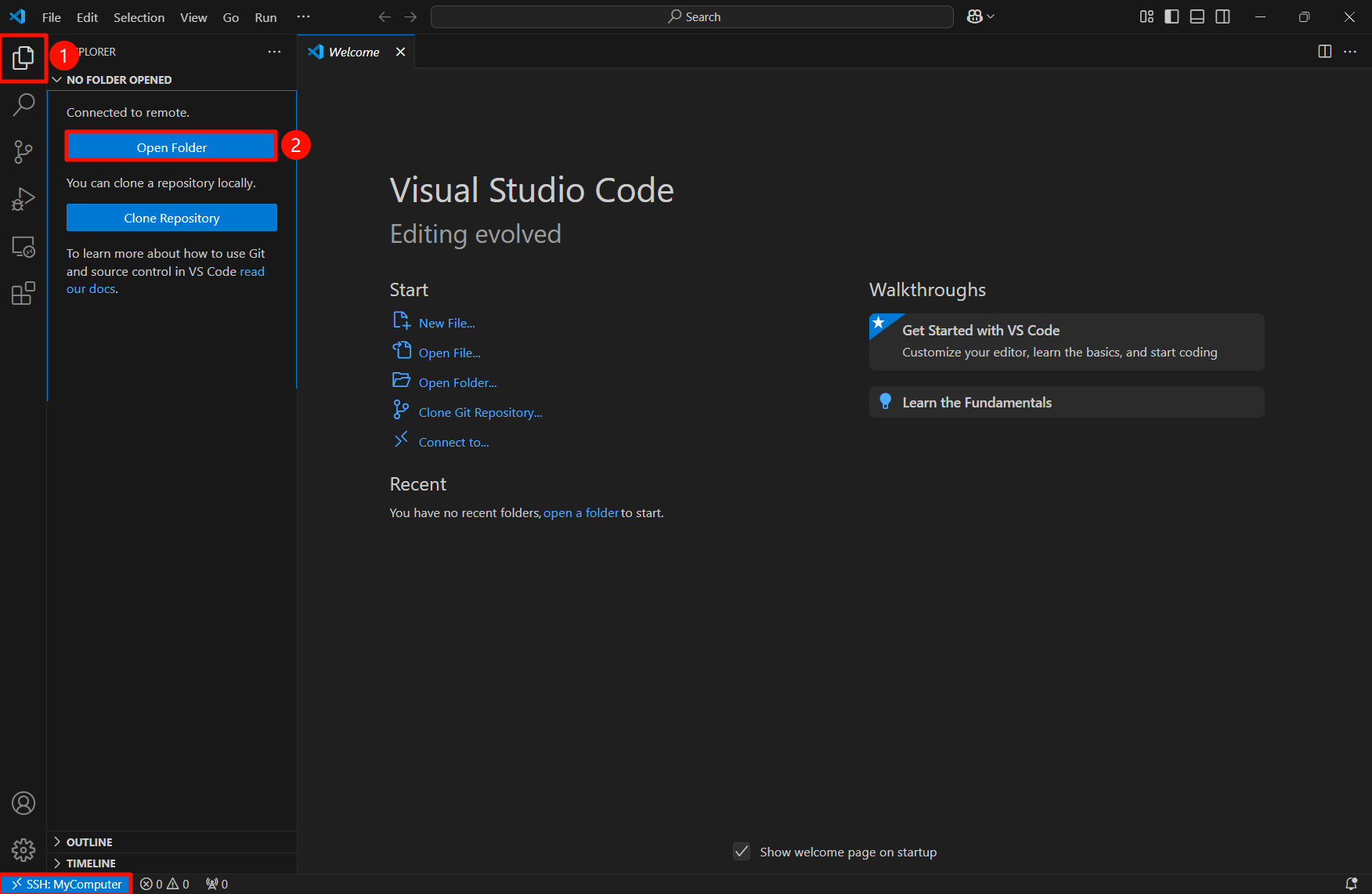

After the remote is successful, there is a prompt in the lower left corner; we can open the folder of the remote device through VSCode

image-20250103223006694

image-20250103223939977

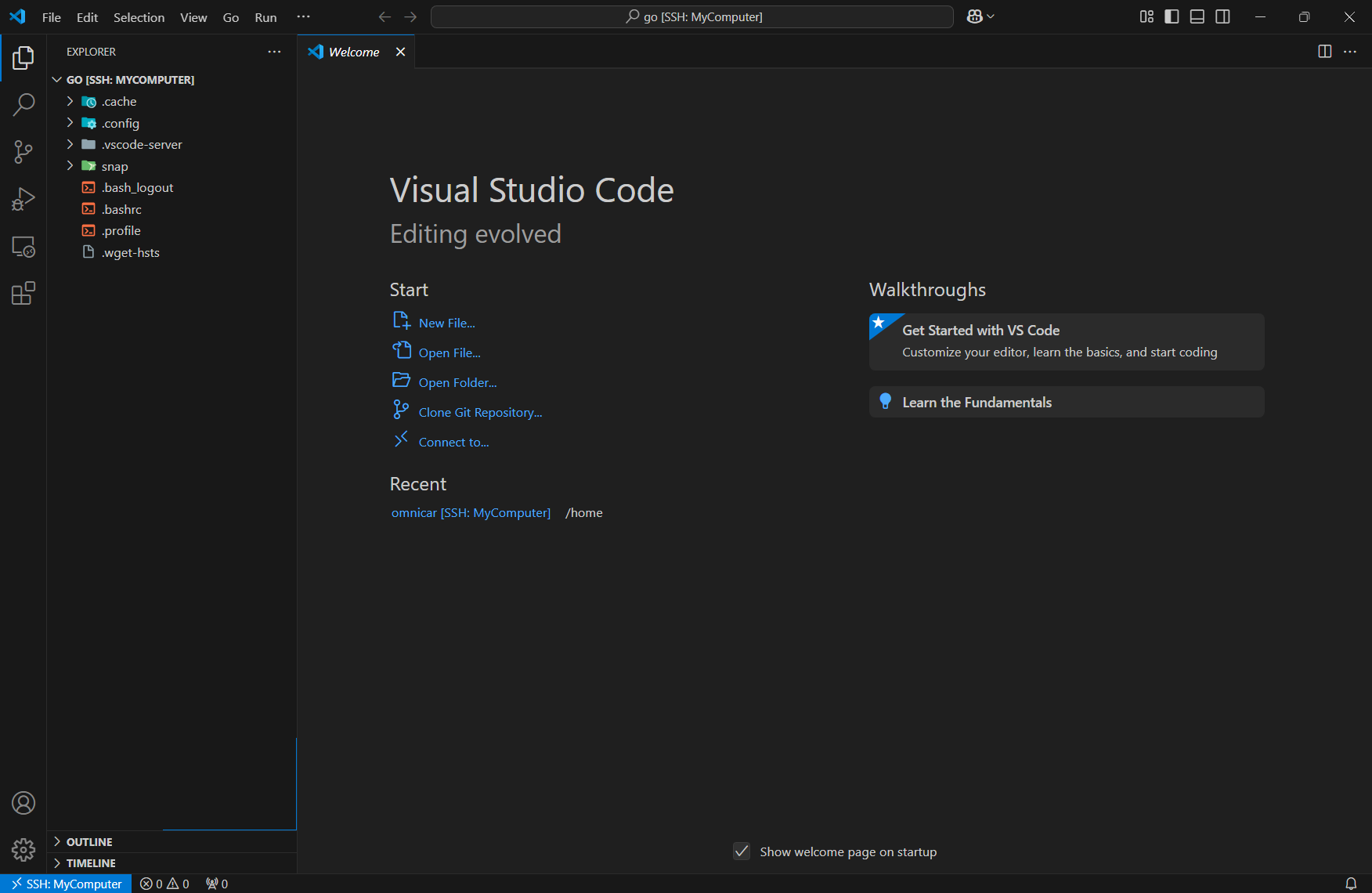

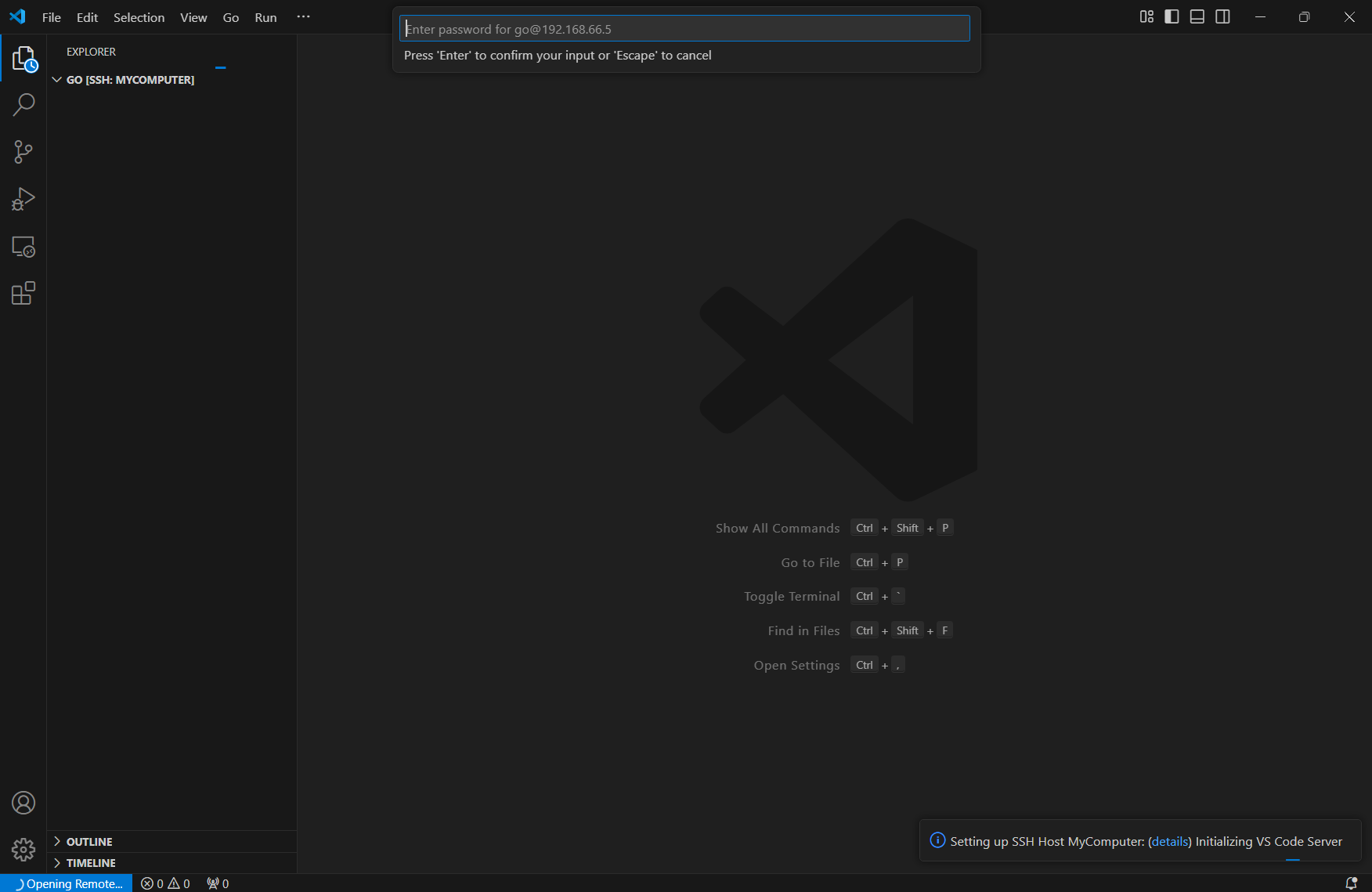

Enter the password again:

image-20250103224011715

image-20250103225421540
